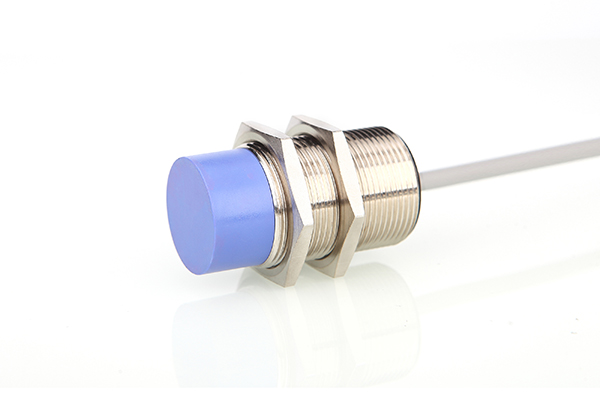

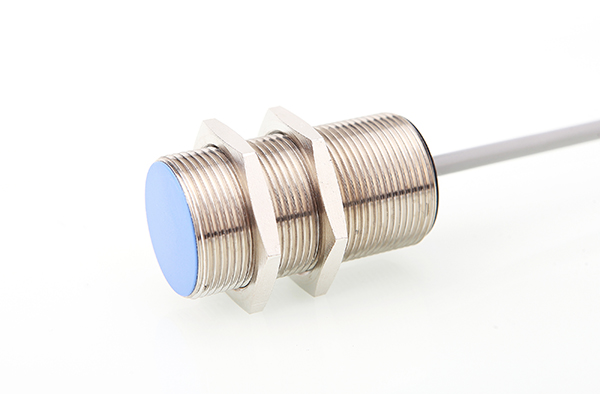

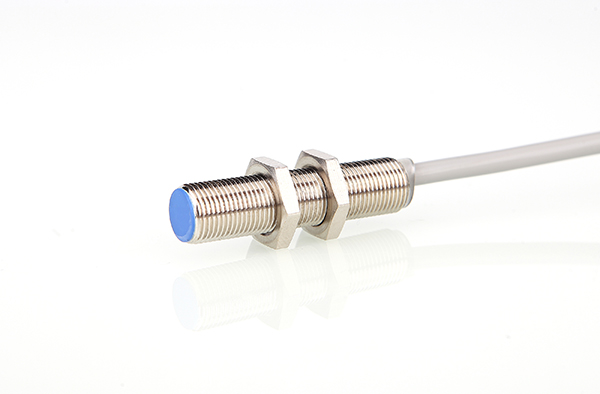

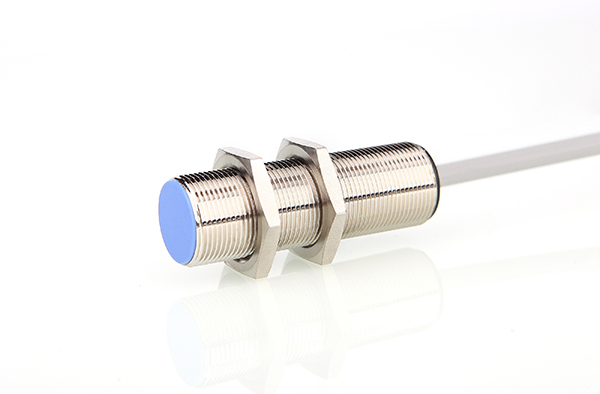

Inductive low temperature proximity sensor

Minimum working temperature is -40℃

Different structures and sizes, reliable product quality, stable temperature drift performance

Industry application：Automobile industry / Packaging industry / Smart storage / Metallurgical Industry / Petrochemical / Printing industry / Machine tool industry / Textile industry / Food Industry / Factory automation

基本参数

型号	规格	感应距离	开关频率	安装方式	输出信号	产品长度	连接方式
POL-M0802N1-DU3-40	M8	2mm	3000Hz	Flush	NPN.NO	45mm	Cable,2m,3-wire
POL-M0802N2-DU3-40	M8	2mm	3000Hz	Flush	NPN.NC	45mm	Cable,2m,3-wire
POL-M0802P1-DU3-40	M8	2mm	3000Hz	Flush	PNP.NO	45mm	Cable,2m,3-wire
POL-M0802P2-DU3-40	M8	2mm	3000Hz	Flush	PNP.NC	45mm	Cable,2m,3-wire

型号	规格	感应距离	开关频率	安装方式	输出信号	产品长度	连接方式
POL-M1204N1-DU3-40	M12	4mm	3000Hz	Flush	NPN.NO	50mm	Cable,2m,3-wire
POL-M1204N2-DU3-40	M12	4mm	3000Hz	Flush	NPN.NC	50mm	Cable,2m,3-wire
POL-M1204P1-DU3-40	M12	4mm	3000Hz	Flush	PNP.NO	50mm	Cable,2m,3-wire
POL-M1204P2-DU3-40	M12	4mm	3000Hz	Flush	PNP.NC	50mm	Cable,2m,3-wire

型号	规格	感应距离	开关频率	安装方式	输出信号	产品长度	连接方式
POL-M1808N1-DU3-40	M18	8mm	3000Hz	Flush	NPN.NO	55mm	Cable,2m,3-wire
POL-M1808N2-DU3-40	M18	8mm	3000Hz	Flush	NPN.NC	55mm	Cable,2m,3-wire
POL-M1808P1-DU3-40	M18	8mm	3000Hz	Flush	PNP.NO	55mm	Cable,2m,3-wire
POL-M1808P2-DU3-40	M18	8mm	3000Hz	Flush	PNP.NC	55mm	Cable,2m,3-wire

型号	规格	感应距离	开关频率	安装方式	输出信号	产品长度	连接方式
POL-M3010N1-DU3-40	M30	10mm	3000Hz	Flush	NPN.NO	55mm	Cable,2m,3-wire
POL-M3010N2-DU3-40	M30	10mm	3000Hz	Flush	NPN.NC	55mm	Cable,2m,3-wire
POL-M3010P1-DU3-40	M30	10mm	3000Hz	Flush	PNP.NO	55mm	Cable,2m,3-wire
POL-M3010P2-DU3-40	M30	10mm	3000Hz	Flush	PNP.NC	55mm	Cable,2m,3-wire
PHL-M3015N1-DU3-40	M30	15mm	3000Hz	Non-flush	NPN.NO	55mm	Cable,2m,3-wire
PHL-M3015N2-DU3-40	M30	15mm	3000Hz	Non-flush	NPN.NC	55mm	Cable,2m,3-wire
PHL-M3015P1-DU3-40	M30	15mm	3000Hz	Non-flush	PNP.NO	55mm	Cable,2m,3-wire
PHL-M3015P2-DU3-40	M30	15mm	3000Hz	Non-flush	PNP.NC	55mm	Cable,2m,3-wire
