HOD-F301

Delay function

Disconnect delay timer / turn on delay timer / single timer

NPN output

NPN open collector 24V; output maximum: 100mA or less; (connect multiple submodules); residual voltage 1V or less

PNP output

PNP open collector 24V; 1 output maximum: 100mA or less; residual voltage 1V or less

protect the circuit

Reverse electrode protection (power supply), current protection (output), over voltage (output)

NPN

Energy-saving mode: maximum 800mW (maximum 32mA at 24V; maximum 39mA at 12V), Note: When using "High Speed" mode, power consumption will increase by 160mw (7mA), normal: maximum 950mW (at 24V, maximum 39mA; 12V) , maximum 52mA)

PNP

Energy-saving mode: maximum 850mW (maximum 35mA at 24V; maximum 44mA at 12V), Note: When using "High Speed" mode, power consumption will increase by 160mw (7mA)

Working environment brightness

Incandescent lamp: up to 20,000 lux; daylight: up to 30,000 lux

Working temperature

-20 to +55 ° C (no freeze)

Working environment humidity

35 to 85% RH (no condensation)

Vibration resistance

10 to 55 Hz, in line with amplitude of 1.5 mm, X Y Z axis direction for 2 hours each

Shock resistance

500m/s², X Y Z direction 3 times each

Housing material

Polycarbonate

weight

50g

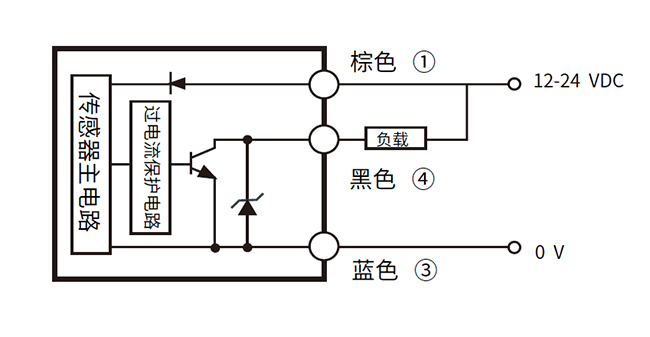

连接图
