HN-M1840P

Ultrasonic sensors

 Transducing frequency is high 400Hz

 Automatic teach setting, automatic operation, easy to operate

 Wide range of applications: paper printing, assembly, folding, packaging, solar wafers, PCB manufacturing

Industry application：Automobile industry / Packaging industry / Smart storage / Metallurgical Industry / Petrochemical / Printing industry / Machine tool industry / Textile industry / Food Industry / Factory automation

主要特点

  • Operating Voltage
  • Paper with a weight per unit area of 10-1200g/m², alloy laminate and film with a thickness of 0.4mm, self-adhesive film
  • design
  • Cylindrical M18 ultrasonic transducer
  • Operating mode
  • Double controller
  • Measurement methods
  • Pulse operation with amplitude estimation
  • Blind zone
  • 5mm in front of the transmitter and receiver
  • Voltage pulsation
  • ≤50mm

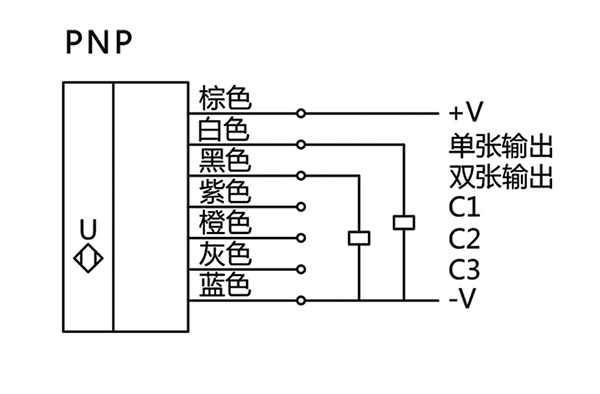

  • Connection Type
  • 2m PUR cable, 7x0.25mm
  • Output
  • NPN/PNP Output:Imax=200mA (-U+2V)
  • Output logic
  • Paperless status: white line OFF, black line: OFF; single sheet status: white line ON, black line: OFF; double/multi sheet status: white line OFF, black line: ON
  • Response time
  • Automatic operation mode is 2.5ms
  • Power-on delay
  • <750ms
  • Transmitter-receiver spacing
  • 20…40mm;optimal:20mm±2mm
  • Allowable angular deviation
  • ±45° to the vertical plane
  • Material
  • Copper nickel plating
  • Ultrasonic transducer
  • Foamed polyurethane, glass filled epoxy
  • Nut tightening torque
  • M18:15Nm
  • Protection level EN 605289
  • IP65
  • Operating temperature
  • -5℃…+60℃
  • Storage temperature
  • -40℃…+85℃
  • Control device
  • Control input: C1 to C3
  • Control device description
  • <-V+6V: Logic 1 (control input -V or floating); >-V+10V: Logic 0 (control input +V)
  • Predetermined area
  • Teaching through control input
  • Indicator light
  • Green light: single sheet; green light flashing: teaching; red light: double/multiple; red light flashing: no Zhang
