POV-M0802N3-DP4

M8

 Normally open, normally closed, freely switchable for special applications

 Protection class IP67

 Short circuit and reverse polarity protection

Industry application:Automobile industry / Packaging industry / Smart storage / Metallurgical Industry / Petrochemical / Printing industry / Machine tool industry / Textile industry / Food Industry / Factory automation

主要特点

  • Operating voltage(vdc)
  • 10…30VDC
  • Voltage Drop Vd
  • <2.0VDC
  • Load Current
  • 200mA
  • NO Load Curren
  • <10mA(24V)
  • Swithing Hysteresis
  • <15%(sr)
  • Repeat Accuracy
  • <1.0%(sr)
  • Operating Temp
  • -25℃…70℃
  • Protection Class
  • IP67
  • Short Circuit Protection
  • YES
  • Reverse Polarity Protection
  • YES
  • Housing Material
  • Brass Nickel Plated
  • Material (Sensing Face)
  • POM
  • Output Indicator
  • LED Yellow

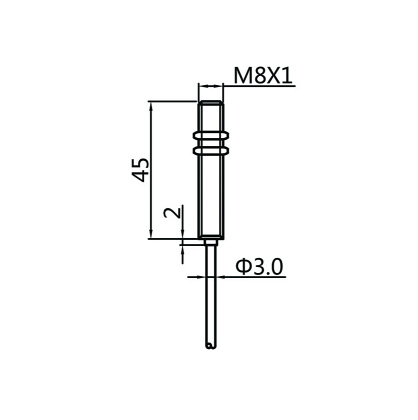

产品尺寸图
